12VDC Zhaga 18 Receptacle Standard Microwave Sensor Dimming Highbay
Use
Features
- Zhaga 18 standard receptacle, function pins 123
- Easy installation, suitable for UFO highbay light
- Optional sensor head, Daylight Sensor & Microwave Sensor & PIR
Sensor
- 12VDC Input, 0-10V dimming
- HD05R LCD remote control
Parameter Table
| Operating voltage | 10.5-15V DC |
| Operating Current | 30mA±5% |
| Stand-by power | ≤0.5W |
| Detection area | 10%/50%/75%/100% |
| Hold time | 5s/30s/1min/3min/5min/10min/20min/30min |
| Daylight threshold | 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable |
| Stand-by period | 0s/10s/30s/1min/5min/10min/30min/+_x001e_∞ |
| Stand-by dimming level | 10%/20%/30%/50% |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <0.3mW |
| Mounting height | Max.15m ( 49.21ft ) |
| Detection range | Max.ø14m/45.93ft |
| Detection angle | 30°-150° |
| Operating temperature | -20°C~+60°C |
| IP rating | IP65 |
| Life time | 50,000 hours |
| Warranty | 5 years |
Default Program
- Detection area 100%
- Hold time 5s
- Daylight threshold Disable
- Stand-by period 0s
- Stand-by dimming level 10%

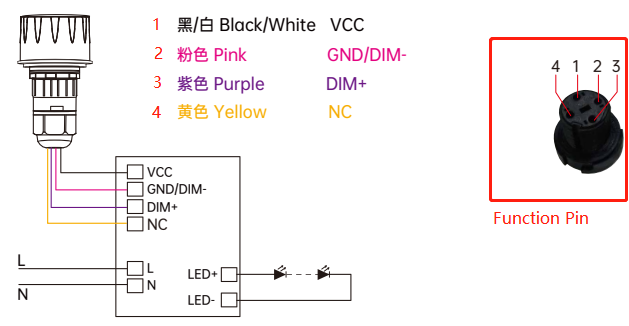

Wiring Diagram
Performance Function
* Daylight Priority
With Daylight priority function, the sensor is able to
differentiate artificial light brightness from natural light after
installed inside the fixture, and automatically turn off light when
ambient brightness exceeds preset lux level.
* Daylight Threshold
With sufficient daylight, even when motion detected, light remains
OFF.
* Bi-Level Dim
When motion is detected, the sensor will switch on the light to 100% brighteness.
After people leave the detection area, light remains 100%
brightness for the hold time.
After holdtime, sensor dims light to standby dimming level (10% 20%
30% 50%) and keeps for a standby period.
After standby period,sensors turns OFF the light.
* ON/OFF
When motion is detected, the sensor will switch on the light to 100% brighteness.
After people leave the detection area, light remains 100%
brightness for the hold time.
Preset standby period as 0S, sensor turns OFF the light after
holdtime.
Specification Download
HD06VCRH
7B 12VDC Zhaga Microwave Sensor Dimmable....
