Sign In | Join Free | My himfr.com |
|
Ask Lasest Price | |
Brand Name : | HAISEN |
Model Number : | HS010 |
Certification : | none |
Price : | Negotiable |
Payment Terms : | D/A, D/P, T/T |
Supply Ability : | 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days |
Delivery Time : | Standard Models Within 3 Weeks |
Small Size Daylight Harvesting Environment Brightness Checking Function Dimming
Specification Download
Parameter Table
Input Voltage | 3.3V-15V DC |
Operating Voltage | 3.3V |
Operating Current | <5mA |
Brightness Range | 0-60000Lux |
Output | High level(3.3V) Low level(GND) |
Output | DIP Switch |
Connection | VCC GND TX |
Set-up Time | <30ms |
IP Rating | IP20 |
Operating Temperature | -40℃ - 85℃ |
Warranty | 5 Years |

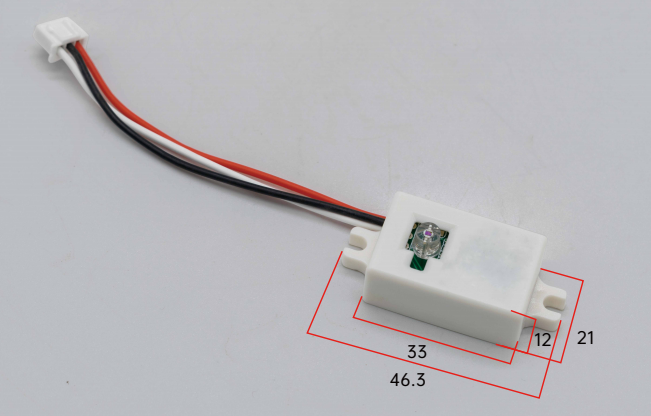

Size (mm)
Suitable Application - Environment brightness collection
![]() |
