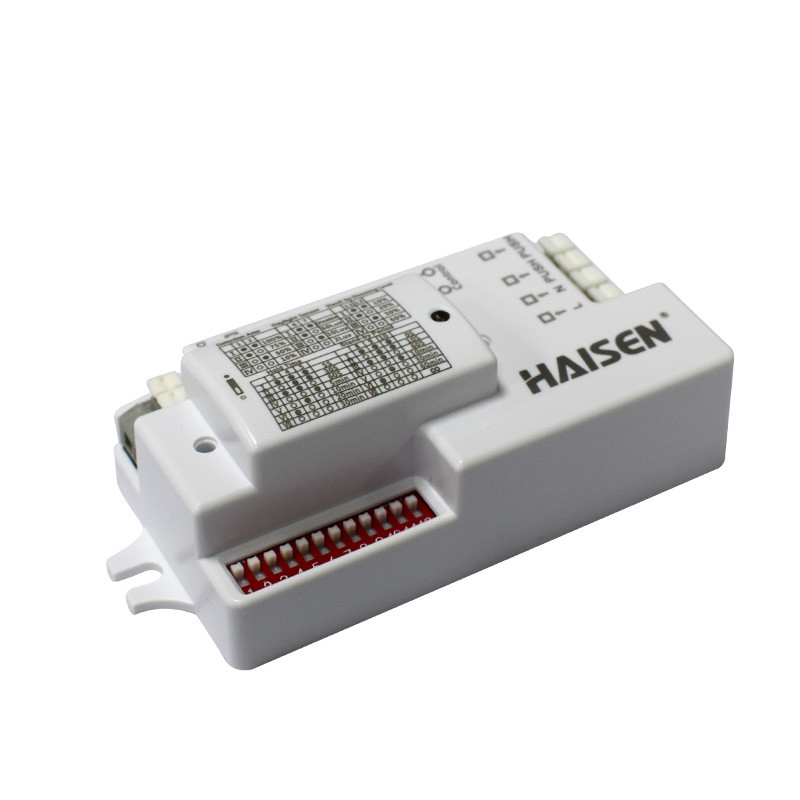

Microwave IP20 DALI Motion Sensor Operating Voltage 120V 277VAC

120 - 277VAC DALI Motion Sensor 5.8GHz ± 75MHz Microwave Frequency CE

HDD01- DALI Sensor with Voltage of 120-277VAC IP20 Built-in Installation Dimmable Sensor with Mounting Height of 8M Which could Match DALI Driver.

Features:

1. DALI driver matching with dimming function.

2. DIP switch setting parameters.

3. Daylight function to detect natural light priority than artificial light.

4. Different sensitivity of 10%, 50%, 75%, 100%.

5. 8M Mounting height to meet the requirement of warehouse.

6. IP20, CE certificate.

Detailed Product Description

Wiring diagram

With clear indication for the DALI± and LED± terminal to be connected with DALI driver and power supply seperately.

Mechanical structure and Installation(mm)

Dimension(mm)

Detection coverage

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

Typical installation height 8m.

DIP Switch Settings

Detection area Hold Time Daylight threshold Stand-by Period Stand-by
In this area, The period of Definition of the The period of light dimming level
movement will light keeping ambient brightness; keeping low output The definition of
be detected 100% brightness only when the before it's low output in the
and able to after moving ambient brightness is completely standby period.
trigger the objects leave the lower than the preset switched off. When
sensor. 100% detection area. specific lux amount, it's preset as"∞"
detection area the sensor will work; the light always
is also known when it's preset as keep at low output
as the strong "disable", the sensor if no movement in
sensitvity. works everytime it the detection area

detects motion and doesn't turn
regardless the off.
ambient brightness.

Application Function Demo

1. Automatically ON/OFF function:
Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.

2. No daylight detection function:

The daylight threshold is set to "Disable".
Light on when detect movement. After people leave, Light off after stand-by period.
Applications: Dim places such as Basement Parking, Underpass.

3. Function Demo - Dimmable control / Corridor Function:

User Notes:

1. Microwave sensor can be installed in any lamp except the one with full metal shell.
2. The detected surface cannot be shielded by metal objects.
3. Make sure the microwave module is completely exposed outside.
4. The detection surface of the sensor module shall be installed facing the detection area.
