Customized Detector 20*24*6.7mm IC Sensor Microwave For LED Bulb

12VDC 5V PWM Customized Detector On Off Switch Sensor 20*24*6.7mm For LED Bulb

Features:

1. 12VDC ON/OFF microwave sensor without housing for built-in installation.

2. Function well under the temperature of -20°C~+60°C.

3. Super compact design for very small and designed structure of decorated light (downlight / pendant).

4. Max. 12M detection area and 6M mounting height for widely used in big space like shopping center and showroom.

5. Customized size with special parameters to meet special requirements.

Detailed Specifications:

Wiring diagram

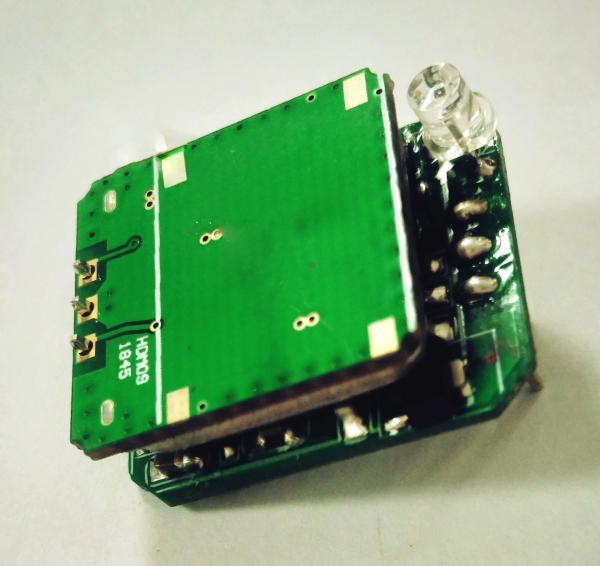

Mechanical Structure:

1. With the Rod Antenna, Daylight PD, The module could detect Movement and daylight to control the light automatically.

2. With the installation hole, the module could be easily installed onto the light board with a screw.

Dimensions:

Could be customized base on different requirement and lighting fixtures

Detection Area:

Could be customized base on different requirement and lighting fixtures

Application Demo:

Light keep off when ambient light is sufficient even detect movement;

Light turn on when detect movement and ambient light is insufficient;

when people leave, Light turn off after the hold on time.

Application:

Haisen Technology focus on innovation of microwave sensor to make a difference in IoL and smart lighting control industry.

We focus on Innovation of proactive microwave sensor and IoT;

We commit to be worldwide brand with integrity and respect;

We insist on CUSTOMER FIRST;

We strive to make a difference for energy saving.

Shenzhen HAISEN Technology Co.,Ltd，founded in March 2013, has become a National High-Tech and ISO9001:2015 certificated Enterprise.Our new facility, an owned property is located along Songshan Lake of Dongguan city, neighbor of HUAWEI. Total footage is 8,000m², with about 300 people.

We focus on developing and manufacturing 5.8G and 10.525G microwave motion sensors, PIR Sensor and wireless control smart sensor products. We have about 40 R&D engineers, they master core hardware technology and software algorithm.

We produce the sensors all by ourselves. In our facility, you can see our SMT manufacturing room, product dept with 4 semi-automatic DIP lines, indepedent automatic testing rooms and package lines.

We have 30 people for Quality Center and we strictly follow ISO9001:2015 quality management system.
The quality center are 2 parts：
Comprehensive Testing: Verification & Assessment of product function and performance at early R&D stage

Quality Control: Quality supervision on incoming materials, manufacturing process and delivery.

Our Marketing Center is constitute by Marketing, Domestic Sales and International Sales.
To better support our customers, we have set up local offices in East China and Xiamen; and developed agents in China and all over the World.
