    120V 277VAC 60W Motion Sensor Driver Microwave Movement Detectors

    Ask Lasest Price
    Brand Name : HAISEN
    Model Number : HT57V-I
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100,000pcs per month
    Delivery Time : 1-3 days for sample order, 1-2 weeks for bulk order
    • Product Details
    • Company Profile

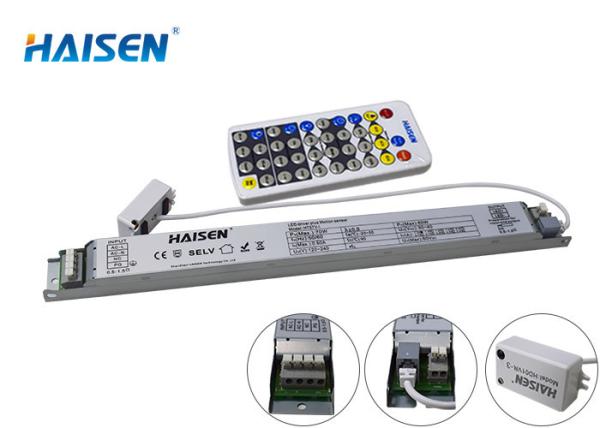

    120V 277VAC 60W Motion Sensor Driver Microwave Movement Detectors

    120V 277VAC 60W Motion Sensor Driver Microwave Movement Detectors


    60W CE RoHS Approval Dimmable Function LED Driver Microwave Motion Sensor


    Features:

    • Have passed CE RoHS certificate.
    • Datached design is workble for tri-proof light, easy installtion.
    • Detection area, hold time, stand-by period, stand-by dimming level, daylight sensor and mode can be precisely set via remote control.
    • Dimming function, LED driver and iosolated solution.

    Product Description

    Output LED current0.45A/0.55A/0.60A/0.70A/0.75A/0.90A/1.05A/1.20A/1.35A/1.50A
    Output LED voltage30V-40V DC
    Output LED power60W
    Microwave frequency5.8GHz±75MHz
    Microwave power<0.3mW
    Detection angle30°-150°
    Input voltage120~240VAC 50/60Hz
    Input current0.30A Max
    Input power70W Max
    Detection area25%/50%/75%100%
    Hold time5s/30s/1min/3min/5min/10min/20min/30min
    Daylight threshold2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ Disable
    Stand-by period0S/10s/30s/1min/5min/10min/30min/+∞
    Stand-by dimming level10%/20%/30%/50%
    Mounting heightMax.6m(ceiling mounted) Max.3m(wall mounted)
    Detection rangeMax.ø14m(ceiling mounted) Max.10m(wall mounted)
    Empty load voltage≤63VDC (Max)
    Power factor≥0.9
    Efficiency87% (Max.)
    Operating temperatureta:-20°C~50°C Tc: 80°C
    Abnormal protectionSCP:Auto recovery,OVP,OCP,OTP
    EMC standardEN55015
    Safety standardEN61347-1 EN61347-2-13 EN60598-1
    IP ratingIP20
    Life time50,000 hours
    ApprovalCE RoHS
    Package requirementBubble pack, paper flat, outer carton
