    TUV CE RED Long Range Microwave Motion Sensor Wall Mount With DIP Switch

    Ask Lasest Price
    Brand Name : HAISEN
    Model Number : HD011S 1
    Certification : TUV CE RED
    Price : Negotiable
    Payment Terms : D/A, D/P, T/T
    Supply Ability : 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
    Delivery Time : Standard Models Within 3 Weeks
    • Product Details
    • Company Profile

    TUV CE RED Long Range Microwave Motion Sensor Wall Mount With DIP Switch

    TUV CE RED Long Range Microwave Motion Sensor Wall Mount With DIP Switch


    Hot Item ON/OFF Sensor Microwave Rod Antenna With DIP Switch At Back


    Features

    • Automatically turn ON and OFF the sensor
    • Widely applicated options for Detection Area, Daylight Threshold and Holdtime
    • Compact size with unique rod antenna design
    • Easy Installation, 5 Years Warranty

    Parameter Table

    Operating Voltage220-240VAC,50Hz/60Hz
    Switching CapacityMax,100W
    Microwave Frequency5.8GHz±75MHz
    Stand-by power≤0.5W
    Control MethodON/OFF
    ProgrammingDIP Switches
    Detection Angle150° Without Glass Cover
    Detection RangeMax.4m/13.12ft
    Mounting HeightMax.ø10m/32.8ft
    Detection Area50%/100%
    Hold Time5s/1min/3min/10min
    Daylight Threshold30Lux/Disable
    IP RatingIP20
    Operating Temperature-25°C~+60°C
    Warranty5 Years

    *Not suitable for side-wall Mounting


    Detection Range

    Wiring Diagram

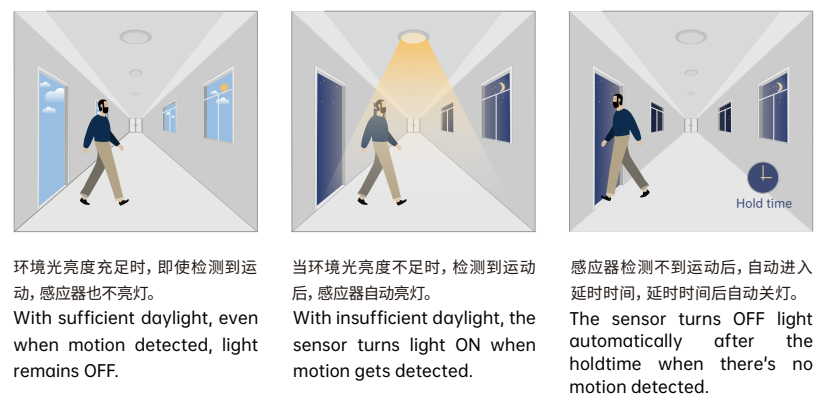

    Performance


    HD011S 1.pdf
