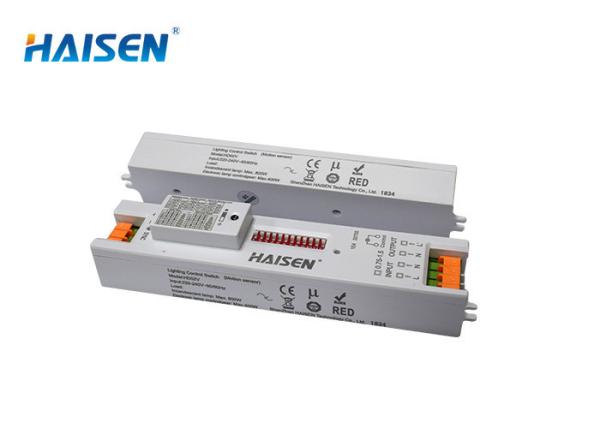

IP20 Rating Daylight Motion Sensor Max 6m 19.68ft Mounting Height
Tri-proof light microwave sensor with linear design-HD02V for
tri-proof light and linear light
Specifications:
Input | Operating Voltage | 220~240 VAC 50/60Hz |
|
Stand-by Power | ≤1W |
|
Output | Switching capacity | Max.400W(Control gear) Max.800W(Incandescent lamp) |
|
Sensor Parameters | Hold Time | 5s/30s/1min/5min/10min/20min/30min |
|
Detection area | 10%/50%/75%/100% |
|
Daylight Threshold | 2Lux/10Lux/50Lux/Disable |
|
Stand-by period | 0s/10s/1min/10min/30min/1h/∞ |
|
Stand-by dimming level | 10%/20%/30%/50% |
|
Mounting Height | Max.6m(ceiling mounted); Max.3m(wall mounted) |
|
Detection Range | Max.14m(ceiling mounted); Max.10m(wall mounted) |
|
Wireless Parameters | Operating Frequency | 5.8 GHz ±75 MHz |
Dimming Control | Dimming |
Operating Environment | Temperature | -20°C~+55°C |
Detection angle | 30°-150° |
Certificate | Certificate | TUV/RED/CE / RoHs |
Others | IP Rating | IP20 (Built-in) |
Installation Size | 162.6mm*32.4mm*31.3mm |
Packaging | Bubble bag +Outer Carton(K=A) |
Life | 50000h |
Features:
Linear design sensor with operating voltage of 220-240V for
tri-proof and linear light.
With 12 DIP switch keys to offer more options for Hold time,
stand-by period.
Keep the light on with a lower brightness like 10%,20% and the like
by setting the stand-by period to be the status of “∞” when no
movement detect to meet the special requirements in some special
occasions like parking lot.
Turn off the light when no more movement after the stand-by period
to save energy.
Automatically turn on the light to be 100% brightness when detect
the movement with an insufficient daylight.
7 pole pluggable clamp terminal (L,N,N,L’, 1-10V+,1-10V-, SYNC) for
0.75-1.5mm² cable.
With the terminal of SYNC, it could keep all of the light connected
in the same group to be synchronous which means all of the light
will turn on at the same time.
It’s flexible to control the detection range With four
options(10%,50%,75%,100%) which make it very widely used in the
parking lot to lower the sensitivity of light to avoid false
trigger.
IP20 and 5 years of warranty.
ON/OFF Daylight sensor Detection area Hold time Warranty 5 years
stand-by period stand-by dimming
level
Dimensions:
With the linear structure and width of only 32.4mm , it perfectly
match the shape of most
Tri-proof and linear light for built-in installation inside of the
lighting fixture.
Wiring Diagram:
With the terminal of SYNC, several sensors could be connected with
each other in one group. it could keep all of the light being
connected in the same group to be synchronous which means all of
the light will turn on at the same time.
Detection coverage:
Max. detection range will be 14m for ceiling mounted; Max.
Detection range will be 10m for wall mounted.
Dip switching settings:
Detection area Hold-time Daylight threshold Stand-by period
Stand-by dimming level
In this area, The period of Definition of the the period of light
The
movement will light keeping ambient brightness; keeping low output
definition of
be detected 100% brightness only when the before it's completely
low output
and able to after moving ambient brightness switched off.when it's
in the
trigger the objects levea is lower than the preset as"∞",the light
stand-by period.
sensor. 100% the detection preset specific always keep at low
detection area area. lux amount,the output if no movement
is also known sensor will work; in the detection area
as the strong when it's preset and doesn't turn OFF.
sensitivity. as"disable",the
sensor works
everytime it
detects motion
regardless the
ambient brightness.
