    6 DIP Switch AC240V On Off Switch Sensor For Downlight

    Ask Lasest Price
    Brand Name : HAISEN
    Model Number : HD05S
    Certification : CE RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200,000pcs per month
    Delivery Time : 1-3 days for sample order, 1-2 weeks for bulk order
    • Product Details
    • Company Profile

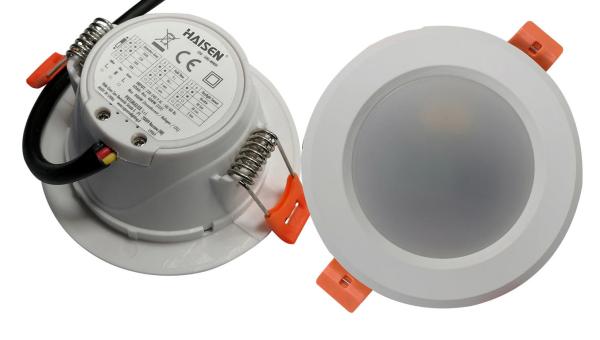

    6 DIP Switch AC240V On Off Switch Sensor For Downlight

    6 DIP Switch AC240V On Off Switch Sensor For Downlight


    6 DIP Switch Used For Downlight 2.5-6m Mounting Height Microwave Sensor


    Features of ON/OFF Sensor:

    1. Flush mounted version,perffect fitting lamps

    2. Built-in 6 DIP switch

    3. Automatically ON/OFF control when detect movement

    4. Daylight function to keep light off with sufficient brightness even detect movement

    5. Loop in and loop out for easy ilnstalation

    Installation of Microwave sensor:

    Flush mounted version


    Setting of Macirowave sensor:

    Detection area:

    In this area,movement will be detected and able to trigger the sensor.100% detection area is also known as the strong sensitvity.

    Hold time:
    The period of light keeping 100% brightness after moving objects leave the detection area.

    Daylight threshold:

    Definition of the ambient brightness; only when the ambient brightness is lower than the preset specific lux amount, the sensor will work; when it's preset as "disable",the sensor works everytime it detects motion regardless the ambient brightness.

    Application of Microwave sensor:
    1. Automatically ON/OFF function:
    With sufficient daylight,even when motion detected,light remains OFF.
    With insufficient daylight,when motion detected,light ON.
    After the last detection,and the present hold time elapsed,light OFF.
    2. No daylight function
    When the daylight threshold is set to "Disable".
    Light on when detect movement, After people leave, Light off after stand-by period.
    Applications: Dim places such as Basement Parking, Underpass.
    When motion is detected, the sensor will switch on the light to 100% brighteness.
    After people leave the detection area, light remains 100% brightness within hold time.
    After the last detection and the present hold time elapsed, light OFF.



    Wiring diagram of Microwave sensor:

    Control modeON/OFF
    Connection typeRed(L),Black(N),Yellow(L')
    Stand-by power≤0.5W
    Microwave frequency
    5.8GHz±75MHz
    Motion detection
    0.5~1.5m/s
    Microwave power
    <0.3mW
    Operating voltage220-240VAC 50Hz/60Hz
    Switch capacity
    Max.400W(Control gear); Max.800W(Incandescent lamp)

    Mechanical structure of Microwave sensor:

    CertificateRoHS CE
    Detection area
    10%/50%/75%/100%
    Setting modeBy 6 DIP switch
    Hold time
    5s/90s/5min/15min
    Daylight threshold2Lux/10Lux/50Lux/Disable
    Mounting height
    2.5-4m/8.2-13.12ft (ceiling mounted)
    Detection range
    Radius, 2-6m/6.56-19.68ft (ceiling mounted)
    Temperature
    -20°C~+55°C
    Warranty5 years
    IP gradeIP 20

    HD05S.pdf
