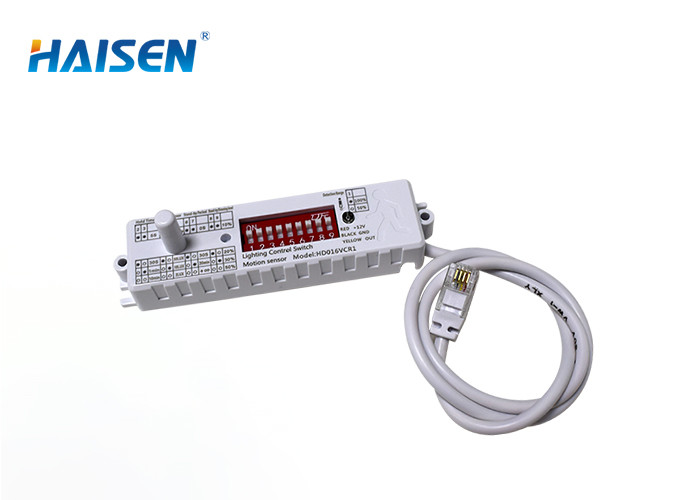

12VDC Input Motion Sensor Body Detection 2-5m Radius with Pins

DC Motion Sensor Dip switching Settings:

Detection Area (Sensitivity)

Usually 100% sensitivity is the most widely used option for many case.

However, if install the sensor in the house, like corrider, living room or restroom, then 50% sensitivity would be better to avoid any false trigger beacuse of the small space.

Hold Time

The period of light keeping 100% brightness when detect any movement

Daylight Threshold

*Disable means the daylight sensor does not work.

The sensor will turn on light once motion is detected regardless of ambient light level.

Definition of the ambient brightness; only when the ambient brightness is lower than the preset specific lux amount, the sensor will work; when it's preset as"disable",the sensor works everytime it detects motion regardless the ambient brightness.

Stand-by Period

The period of light keeping low output before it's completely switched off. When it's preset as"∞“, the light always keep at low output if no movement in the detection area and doesn't turn off.

Stand-by dimming level

The definition of low output in the standby period.

DC Motion Sensor Dimensions:

- 85*22.3*11.7mm

- Super slim design with rod antenna to make the sensor be suitable for linear light, tri-proof light with a smaller hole.

- Solve the shadow of the antenna with reliable detection.

- 3-5 detection radius makes it more stable and avoid false trigger when built in the light in room, parking lot etc.

It could penetrate most materials like glass, plastic and the like but metal which make it be very widely used for ceiling light/tri-proof light and panel light in different occasions like parking lot, production, industrial field and so on.

HD016VCR 3.pdf
