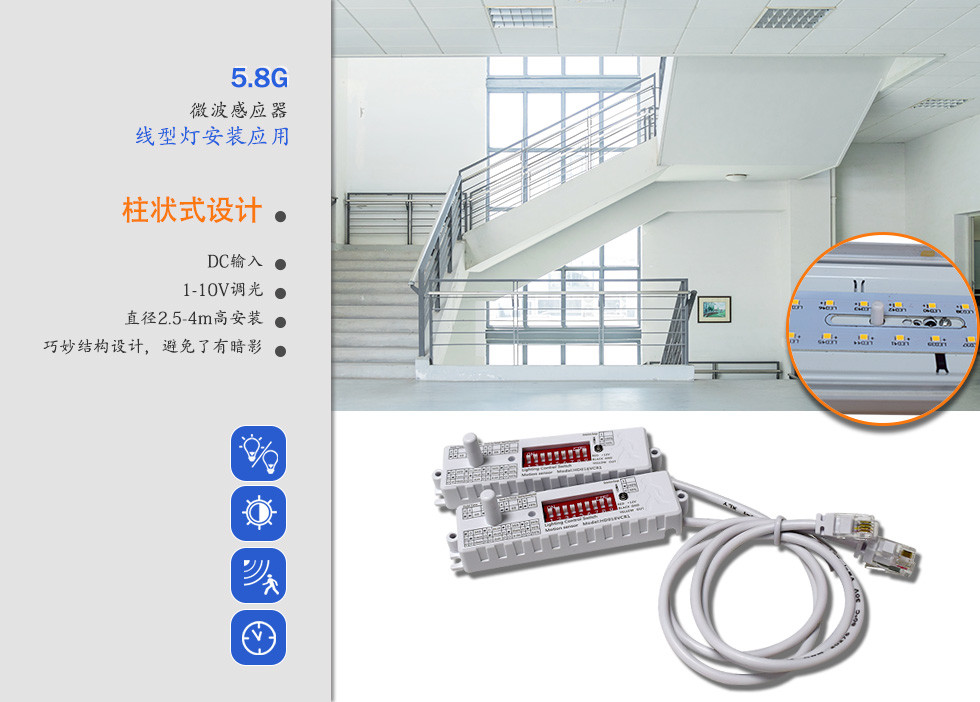

5.8GHz Slim Design 12V DC Motion Sensor Tri-proof/Linear light

DC Motion Sensor Dimensions:

- 85*22.3*11.7mm

- Super slim design with rod antenna to make the sensor be suitable for linear light, tri-proof light with a smaller hole.

- Solve the shadow of the antenna with reliable detection.

- 3-5 detection radius makes it more stable and avoid false trigger when built in the light in room, parking lot etc.

DC Motion Sensor Specifications:

DC Motion Sensor Wiring Diagram:

Three control line to be connect with LED driver:

RED is for connecting with +12V

BLACK is for connecting with GND

YELLOW is for connecting with OUT

It could penetrate most materials like glass, plastic and the like but metal which make it be very widely used for ceiling light/tri-proof light and panel light in different occasions like parking lot, production, industrial field and so on.

HD016VCR 3.pdf
