Features:The 12VDC PIR Motion Sensor HD07VR-PH for Highbay with UL
Description:
The 12VDC PIR Motion Sensor with UL certificate, and suitable for Highbay fixtures with max Mounting Height up to 12 meters/39 feet. You can
control it by remote, it also has many smart functions,likes Bi-level dimming and dusk/dawn function. It is our New development product with 4 optional receptacles, easy to intallation.
Features:
- PIR sensor head, 12VDC powered, remote control.
- Bi-level dimming, daylight threshold and dusk/dawn function.
- Compatible with 4 optional receptacles that can partnering
- with all light fifixtures.
- With UL certifificate.
Performance Parameters:
Model NO. | HD07VR-PH | HD07VR-P |
PIR INFORMATION | Infrared Wavelength | 5-14um |
| Output Signal Peak | ≥3500mV |
| Installation Height | 12m/39ft Max. | 6m/19ft Max. |
| Detection Distance | ≥3m/9ft |
| Warranty | 3 Years |
SENSOR PARAMETER | Detection Area | 25%/50%/75%/100% |
| Holdtime | 5s/30s/1min/3min/5min/10min/20min/30min |
| Daylight Threshold | Disable/ 2lux/ 10lux/ 30lux/ 50lux/ 80lux/ 120lux |
| Standby Dimming Level | 10%/20%/30%/50% |
| Standby Period | 0s/10s/30s/1min/5min/10min/30min/60min+∞ |
|
Dusk/Dawn Sensing/ Photocell | Daylight threshold as 30lux/ 50lux/ 80lux/ 120lux Standby period as +∞ ; Standby dimming level as 10%/20%/30% |
|
Default Program | Detection Area - 100% Holdtime - 5S Daylight Threshold - disable Standby Period - 0S Standby Dimming Level - 10% |
| Control | Standard Partner HD05R, the LCD screen display remote (purchase
seperately) |
INPUT | Input Range | 12VDC |
| Voltage Range | 10-15VDC |
| Current | ≥30mA |
OUTPUT | Signal | DIM 0-10V |
| Connection | 12VDC input/ Black&White wire; DIM+/ Purple wire; DIM-/ Pink wire |
| Stand-by Power | <30mA Power Consumption |
ENVIRONMENT | Working Temp | -20°C~+60°C |
| Storage Temp | -40℃~+80℃ Humidity: 85%(non-condensation) |
CERTIFICATE & STANDARDS | Certification | UL (E529048) |
| Environmental Requirements | In accordance with CE ROHS |
| IP Rating | IP65 |
Wiring diagram:

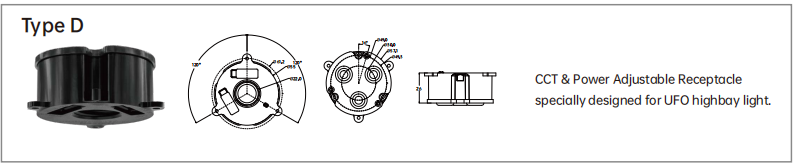

Receptacle Options:
Performance:
Attention:
1. Suitable for indoor application, half/completely outdoor
environment conditions might trigger the sensor.
2. Suitable for ceiling mount installation, adjust sensitivity
properly if it's installed on side-wall because it gets more
sensitive.
3. PIR sensor can't be placed inside any material, fresnel lens
must completely exposed in air.
4. Fresnel lens of the PIR sensor must be lower than light
fifixture.
5. Not suitable environment if there's sudden changed temperature
of airflflow for PIR sensor.
6. Not suitable environment if there's shelves blocking between the
sensor and presence area.
7. Detection area options may NOT working obviously because it
works depends on fresnel lens, it's physically defifined.
8. Detection distance performance works better when moving
parallelly than moving towards to the sensor.
9. Daylight testing delivered in bright day without shadow or
specially designed lampshade or lens.
10. Dimming performance differs when connected to different
drivers; If the driver can't completely turn OFF, sensor can't
either.
11. Input power voltage must be stable with flfloat less than 10%.
12. The fifirst time powered ON sensor, light will be ON 100% for
about 45S then dims to standby level or OFF.
13. Distance detection is delivered by testing person about 165cm
in open area as reference, the result differs by size and speed of moving objects, mountng height and real-life situation.
