    Non Isolated Power 200W Round Highbay UFO Driver With DIP Switch

    Non Isolated Power 200W Round Highbay UFO Driver With DIP Switch


    Description

    • ES-RND200 0-10VDimming/CCT Tuning/Wattage Adjusting series, is a 200W round non-isolated power driver with constant current.

    • The series is specially designed for LED industrial lighting, supplies with high efficiency,

      appropriate hear radiation design and all-around protection of OTP, OVP and SCP, highly improved its reliability and lifespan.


    Features

    • High Efficiency(Up to 95%)

    • Two Stage Design, Flicker-Free

    • With Active PFC For High PF/ Low THD

    • Adjust Wattage & CCT by DIP Switch

    • Isolated dimming:0-10V PWM,Resistor

    • With Auxiliary Power for 12V/200mA

    • Surge Protection: L-N:4KV, L/N-PE:6KV

    • All-Around Protection:OTP, OVP, SCP

    • Five-year warranty


    Performance Parameters

    Output


    Output voltage


    350Vdc Max(@no load)

    180-260Vdc

    Output current adjustable range

    0.6-1.0A

    Rated Output current

    (0.77A@260V;1.0A@200V)

    Rated Output voltage

    180V Min ,260V Max (Po=Vo*Io=160W,full load)

    Output LF current ripple(<120Hz) at full load

    <5%

    Full power output voltage

    200-260Vdc

    Efficiency(Typ.)

    92%@230Vac, full load@260Vdc

    Input


    Input power Max

    175W,@25℃,230Vac 260Vac

    Input current

    2.5Arms Max

    Input voltage range

    Rated:200-240Vac Extreme:176-264Vac(Refer to the reduction curve)

    Frequency range

    47-63Hz

    Frequency range

    PF≥0.95@230Vac,@full load,47-63Hz;

    Other load conditions, please refer to power factor curve

    Total harmonic distortion

    THD≤10%,@230Vac,full load;

    Please refer to: total harmonic distortion waveform

    Inrush current(Typ.)

    100A @230Vac, Ta=25℃, cold start

    Leakage current

    <0.75mA @ 277Vac

    Protection


    Over temperature

    Power derating, recovers automatically
    after fault condition is removed

    Over voltage protection

    Hiccup mode, recovers automatically after

    voltage fault condition is removed

    Short circuit protection

    Hiccup mode, recovers automatically after

    load fault condition is removed

    Environment


    Environmental temperature

    Ta:-40~55℃,please refer to load VS temperature curve

    Ambient temp

    Tc:-40~90℃

    Working humidity

    10~95% RH, no condensation

    Storage temp. and humidity

    -40~+85℃, 5~95% RH


    Environmental protection


    UL Dry, Damp or Wet Location, IP65

    Vibration protection

    10~500Hz, 5G 12min./cycle, period for 72min. Each along X, Y, Z axes

    Safety &EMC


    Safety standard

    IEC/EN61347-1(GB19510-1-2009), IEC/EN61347-2-13(GB 19510.14-2009),

    UL8750, CSA C22.2 NO. 250.13-12;IP65 approved

    Withstand voltage

    Input-Aux:3.75KVac,Output-Aux:3.75KVac, Input-PE:1.5KVac,

    Output-PE:1.5KVac

    Insulated resistance

    I/P-PE,O/P-PE>100M Ohm/500VDC/25℃/70%RH

    EMI

    EN55015 , FCC PART15-CLASSB

    Harmonic current

    EN61000-3-2 Class C

    Surge protection

    L/N-PE:6KV,L-N:4KV

    EMS

    EN61000-4-2,3,4,5,6,8,11; EN61547 Industry standard

    Others


    MTBF

    ≥200Khrs,MIL-HDBK-217F(25℃)

    Weight/Size

    1.1Kg/See mechanical data for details


    Case color


    Black

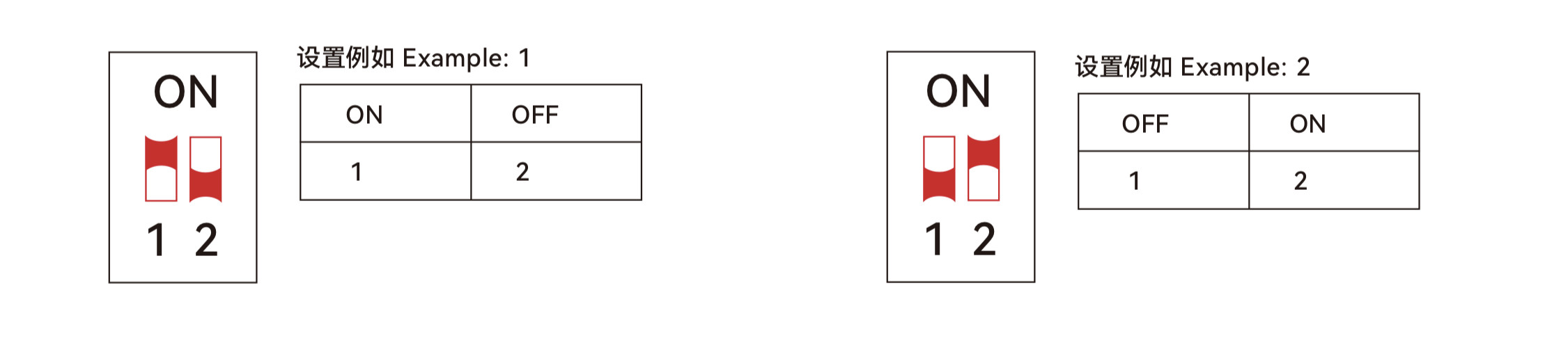

    DIP Switch Programming

    Non Isolated Power 200W Round Highbay UFO Driver With DIP Switch

    DIP Switches and input current


    DIP Switches


    Input Current

    Power range


    1

    2

    Typical Value

    OFF

    OFF

    0.93A

    190-210W

    ON

    OFF

    0.73A

    140-160W

    OFF

    ON

    0.49A

    90-110W


    Wiring diagram

    *Please find the attached WIRING DIAGRAM *

    ES-RND 200 DIP WIRING DIAGRAM.pdf


    Attention


    1. The driver should be kept away from heat source and inflammable or explosive

    materials.

    2. The driver should be installed in open space. In actual application, Tc temperature should not exceed the max allowed temperature(89℃) in the most extreme condition.

    3. With high voltage danger! Please don’t check under the condition of live working. Only professional electricians may carry out wiring and other operations.

    4. Ensure that the input / output wires joint are completely sealed and waterproof-treated if required to prevent electric shock and leakage. The impedance caused by the connection mode in the application should not affect the normal function of the driver.

    5. The driver lifespan is directly related to the driver working temperature. Please refer to the life&temperature curve to evaluate the applicability of the driver.

    6. In practical application, please pay attention to the surge capacity of the front protector.

    7. Pay attention to distance between wire & LED and the heatsink in practical application of non-isolated driver.


    *Please contact us for more details*
