    220-240Vac Led Emergency Converter Used With Ternary Lithium Battery

    Ask Lasest Price
    Brand Name : HAISEN
    Model Number : ES-EOF02-05-01
    Certification : CE UKCA
    Price : Negotiable
    Payment Terms : D/A, D/P, T/T
    Supply Ability : 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
    Delivery Time : Standard Models Within 3 Weeks
    • Product Details
    • Company Profile

    220-240Vac Led Emergency Converter Used With Ternary Lithium Battery

    220-240 Vac Led Emergency Converter Used With Lithium Battery

    Features

    • Constant output power
    • Used with lithium battery
    • Suits forLED fitting with external LED driver
    • Accessary test switch and LED indicator
    • With multi-protection function:

    ​ -battery overcharge protection
    -battery over-discharge protection
    -output overload protection
    -short-circuit protection

    -Open load protection


    Parameter Table

    Input voltage220-240 Vac 50/60Hz
    Input Current0.06A(Max) 230V AC
    Input Power
    <4W@230Vac
    Power Factor0.5
    Load output voltage20-60VDC
    Load output current300-30mA
    Battery charging current200mA(Max)
    Battery charging time24h(Max)
    Battery specificationsTernary lithium battery
    Storage temperature0-60℃
    Maximum shell temperature
    75
    Storage temperature-20-40℃
    Dielectric Voltage withstan
    1.5KVac 5mA 60S (Input to the housing)
    3KVac 5mA 60S (Input to output)
    IP RatingIP20
    LED Indication

    LED Green


    Model Selection table

    Model No.Input voltageOutput voltageOutput CurrentLithium batteryEmergency time
    Emergency power
    ES-E0F02-01
    220-240Vac 50/60Hz
    20-60V DC
    100-30mA
    1800mAh/7.4V
    3Hrs2W
    ES-E0F03-01
    220-240Vac 50/60Hz20-60V DC
    150-50mA
    2000mAh/7.4V
    3Hrs3W
    ES-E0F04-01
    220-240Vac 50/60Hz20-60V DC
    200-60mA
    2500mAh/7.4V
    3Hrs
    4W
    ES-E0F05-01
    220-240Vac 50/60Hz20-60V DC
    250-80mA
    3000mAh/7.4V
    3Hrs
    5W


    Dimension (Unit:mm)

    220-240Vac Led Emergency Converter Used With Ternary Lithium Battery

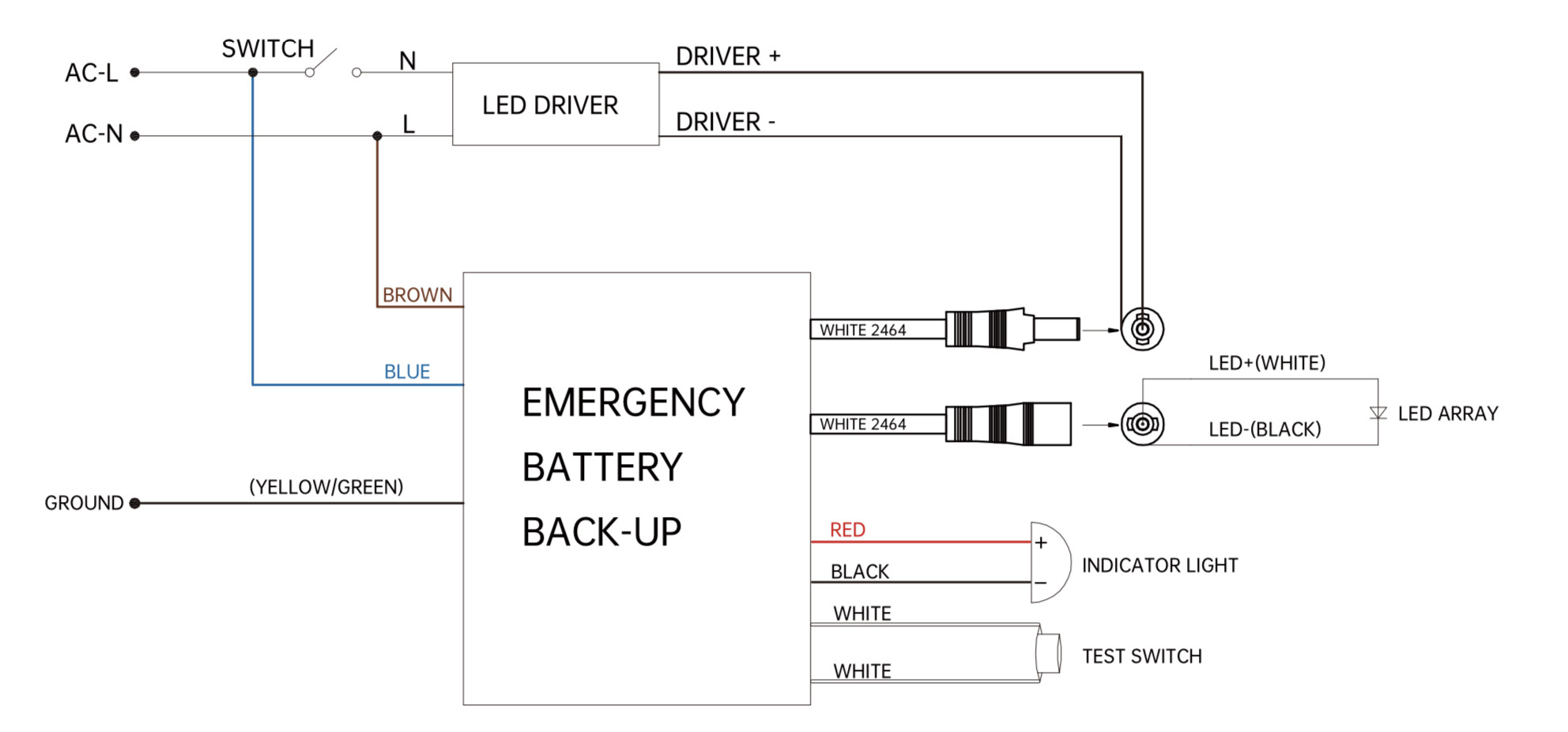

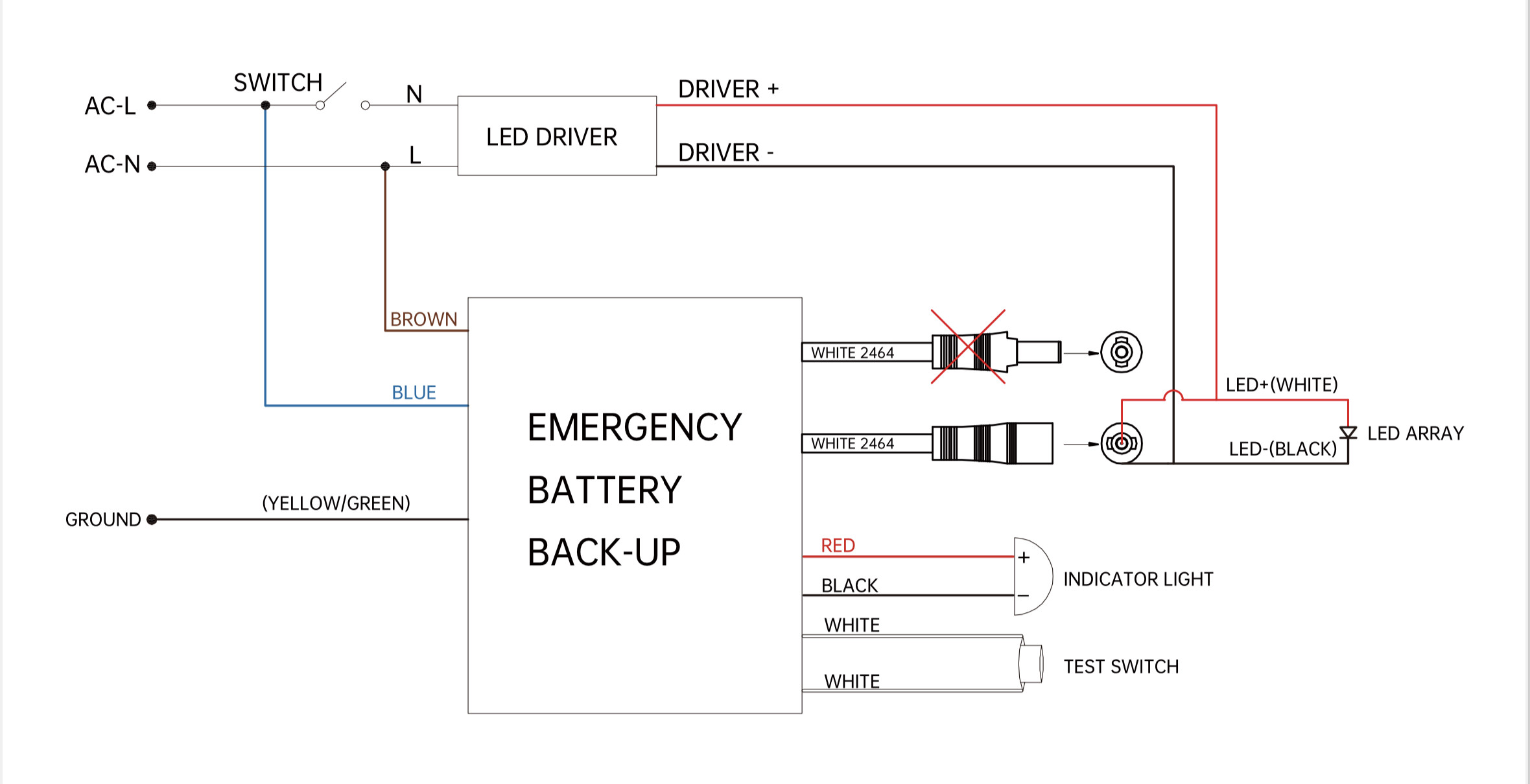

    Wiring Diagram
    220-240Vac Led Emergency Converter Used With Ternary Lithium Battery220-240Vac Led Emergency Converter Used With Ternary Lithium Battery


    Operation Instructions

    1. Connect the wires according to the wiring diagram.
    2. Power on L and N, and close the switch S1. At this time, the load light will turn on, the indicator light of the emergency power supply will turn green, and the emergency power supply is charged normally. Turn off this switch S1, the load light will go out.
    3. Simulated emergency: close switch S1, turn on the load light, and then press the switch (TEST SWITCH), then switch to emergency power supply mode, the green light of the emergency power indicator will go out. Then release the switch(TEST SWITCH), at this time it should be switched to external drive power supply, the green light of the emergency power indicator will light up.
    4. Power failure and incoming call, the phenomenon should be the same as simulated emergency.
    Battery Application Notice

    1.The battery should be recharged and discharged semiannually in normal use conditions.

    2.Do not connect to the circuit when the battery is not use to prevent over-discharge of the battery due to self-consumption of the circuit board.

    3.Please keep the battery from the heat source when installing and using, and only be allowed to use in certain working temperature range.

    4.The battery should be stored in a cool and dry environment.

    5.After long time storage, the battery is cycled every 6 months as required.


    ES-EOF02-05-01.pdf
