DC solution emergency converter with tiny size and battery inside
Features
- Constant output power
- Used with lithium battery
- Suits forLED fitting with external LED driver
- Accessary test switch and LED indicator
- Auto Testing-Self Diagnostic Operation
- With multi-protection function:
-battery overcharge protection
-battery over-discharge protection
-output overload protection
-short-circuit protection
Parameter Table
| Input voltage | 220-240 Vac 50/60Hz |
| Input Current | 0.06A(Max) 230V AC |
| Input Power | <2W @230Vac |
| Power Factor | ≥0.5 |
| Output Voltage Range | 10-50VDC |
| Max.output current | 170mA |
| Battery charging current | 200mA(Max) |
| Battery charging time | 24h(Max) |
| Working temperature | 0-60°C |
| Maximum shell temperature | 75°C |
| Storage temperature | -20-60°C |
| Electric strength | 3000Vac 5mA(input to output) |
| IP Rating | IP20 |
| Warranty | 3 Years |
Model Selection table
| Model No. | Input voltage | Output voltage | Emergency power | Lithium battery | Emergency time | Output Current |
| ES-EOE01-01S | 220-240Vac 50/60Hz | 10-50V DC | 1W | 2000mAh/3.7V | 3Hrs | 100-20mA |
| ES-EOE02-01S | 220-240Vac 50/60Hz | 10-50V DC | 2W | 2500mAh/3.7V | 3Hrs | 100-20mA |
| ES-EOE03-01S | 220-240Vac 50/60Hz | 10-50V DC | 3W | 3000mAh/3.7V | 3Hrs | 100-20mA |
Dimension (Unit:mm)

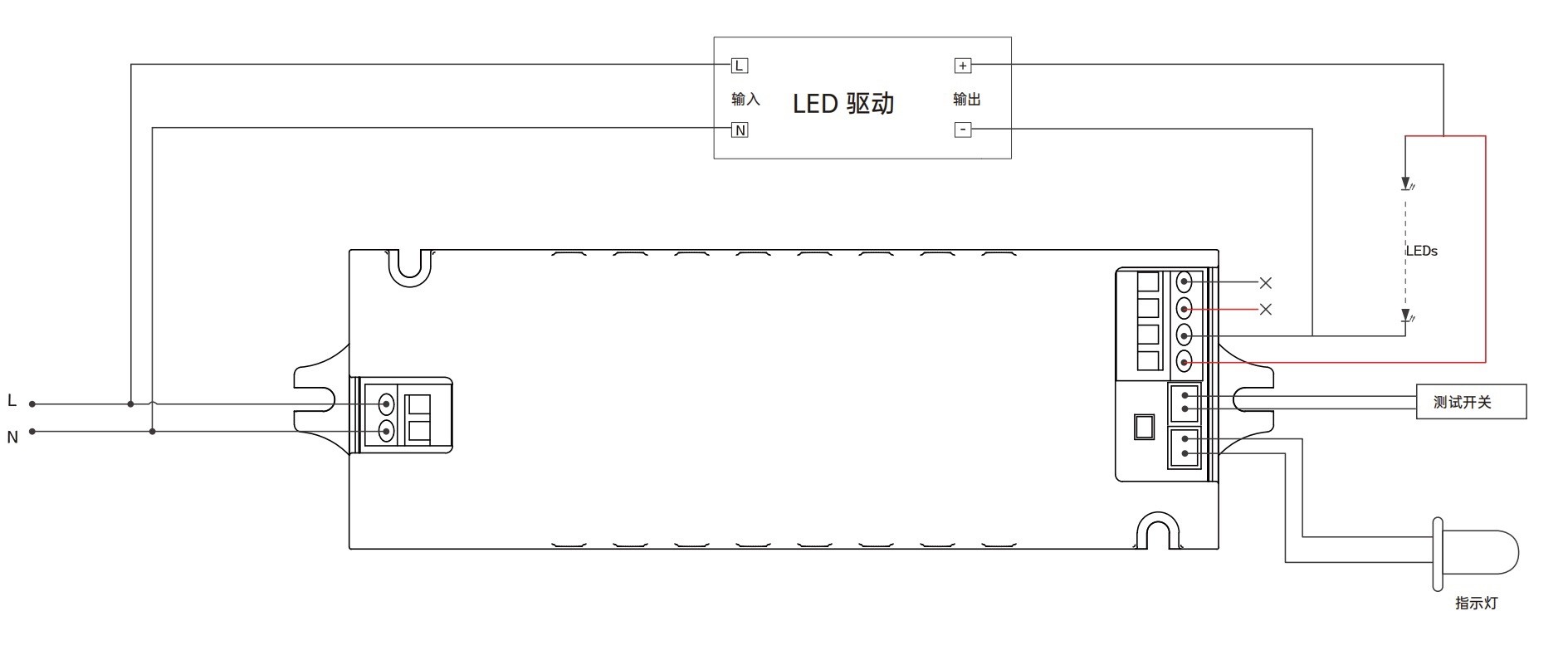

Wiring Diagram
Operation Instructions
1. Connect the wires according to the wiring diagram.
2. Power on L and N, and close the switch S1. At this time, the
load light will turn on, the indicator light of the emergency power supply will turn green, and the emergency power supply is
charged normally. Turn off this switch S1, the load light will go out.
3. Simulated emergency: close switch S1, turn on the load light,
and then press the switch (TEST SWITCH), then switch to emergency power supply mode, the green light of the emergency power
indicator will go out. Then release the switch (TEST SWITCH), at this time it should be switched to external drive
power supply, the green light of the emergency power indicator will light up.
4. Power failure and incoming call, the phenomenon should be the
same as simulated emergency.
Battery Application Notice
1.The battery should be recharged and discharged semiannually in
normal use conditions.
2.Do not connect to the circuit when the battery is not use to
prevent over-discharge of the battery due to self-consumption of the circuit board.
3.Please keep the battery from the heat source when installing and
using, and only be allowed to use in certain working temperature range.
4.The battery should be stored in a cool and dry environment.
5.After long time storage, the battery is cycled every 6 months as
required.
